Description
Note: This is similar but different to the bevel gear set used in Thrifty Swerve V2. Please refer to this SKU for Thrifty Swerve v2 bevel gear sets.

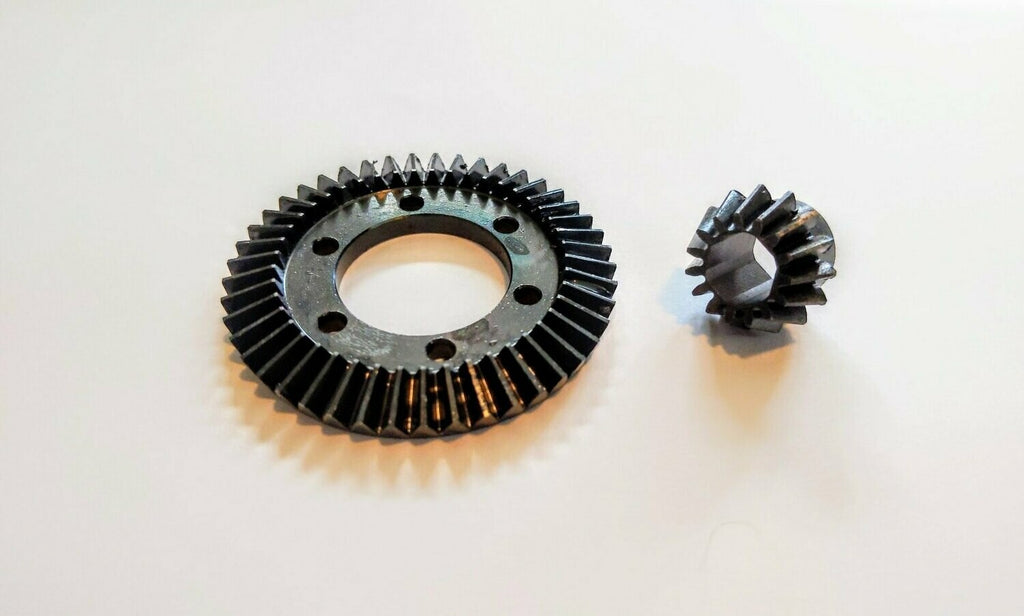

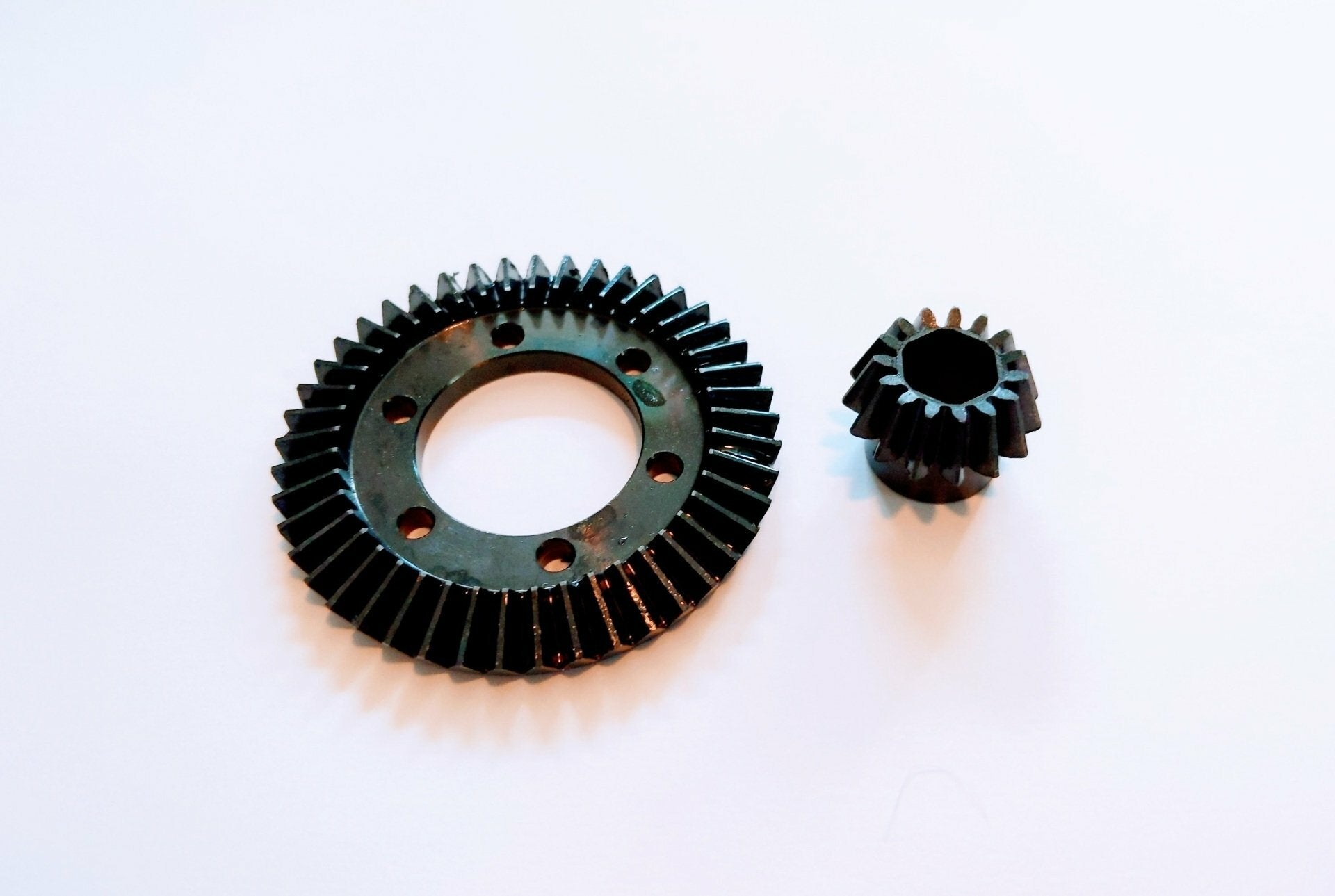

1.25 module 15t and 45t matching pair set. Made from hardened S45C (AISI 1045) Carbon Steel.
This bevel set integrates with the Thrifty Swerve module and also the 3" aluminum billet wheel. 15t bevel fits on 3/8" thunderhex shafts.
15t bevel weight: .03 lbs
45t bevel weight: .14 lbs
Bevel Gear layout drawing & gear STEP files located here
- 3D Viewer
- PDF Viewer
-
