Thrifty Dead Axle Tube Roller Kit

This new kit from Thriftybot allows you to drive 1.125" ID tubing in a number of ways. Using the Thrifty Metahub, plug into tubes and use your bearing bore of choice.

Kit includes all of the following -

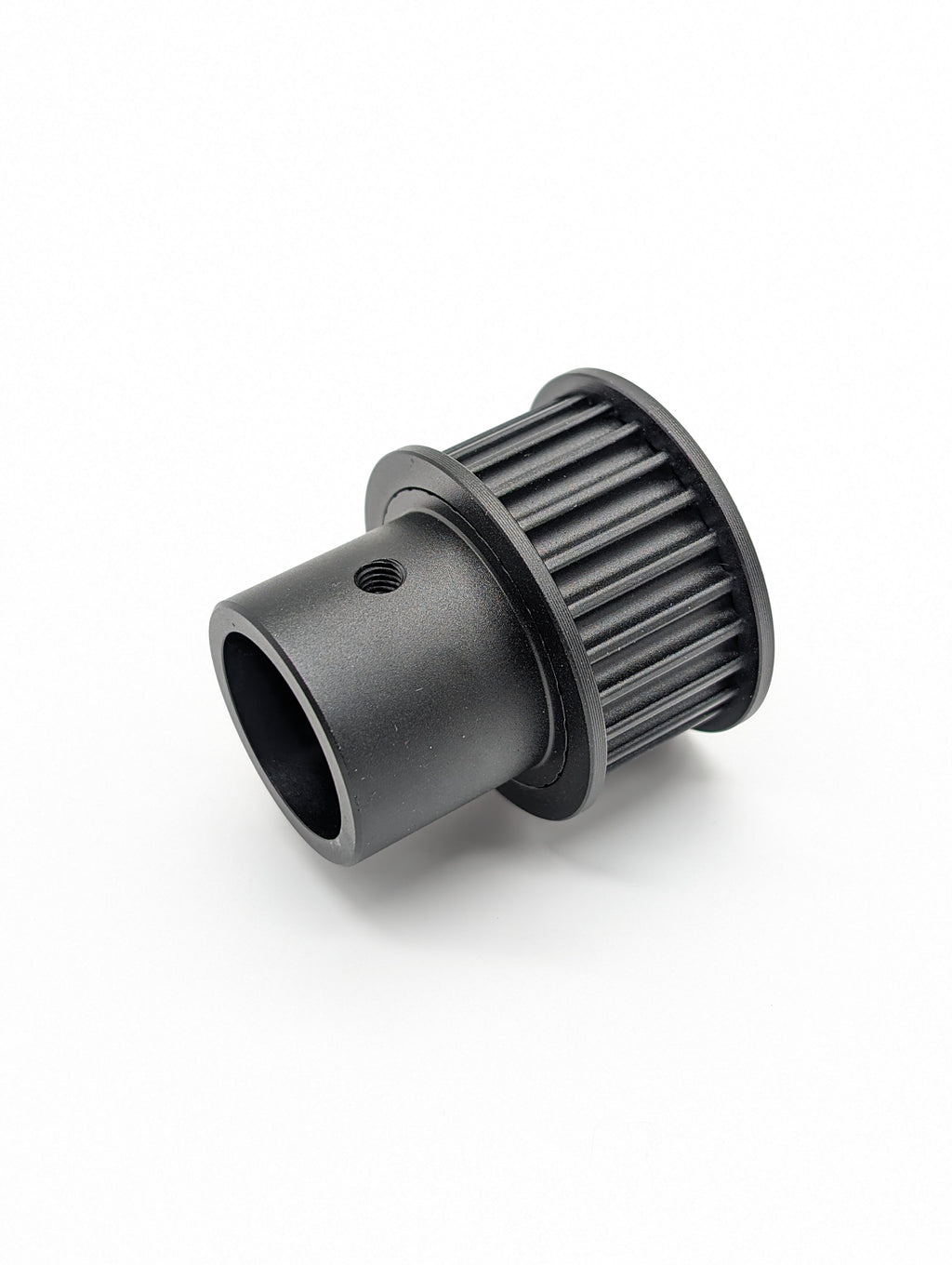

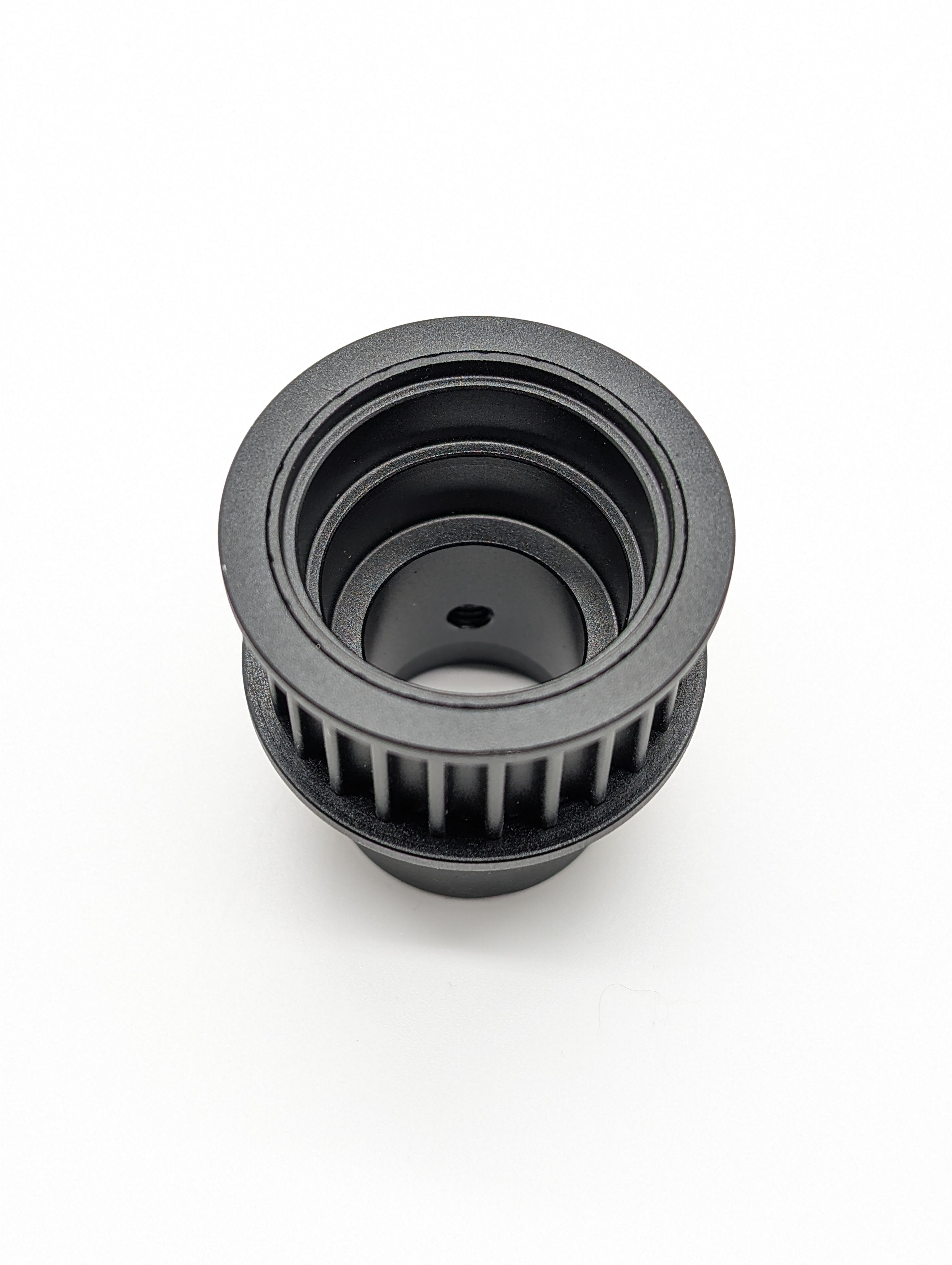

- QTY 2 Aluminum Thrifty Metahubs - 24 Tooth HTD pulley that support the following configurations -

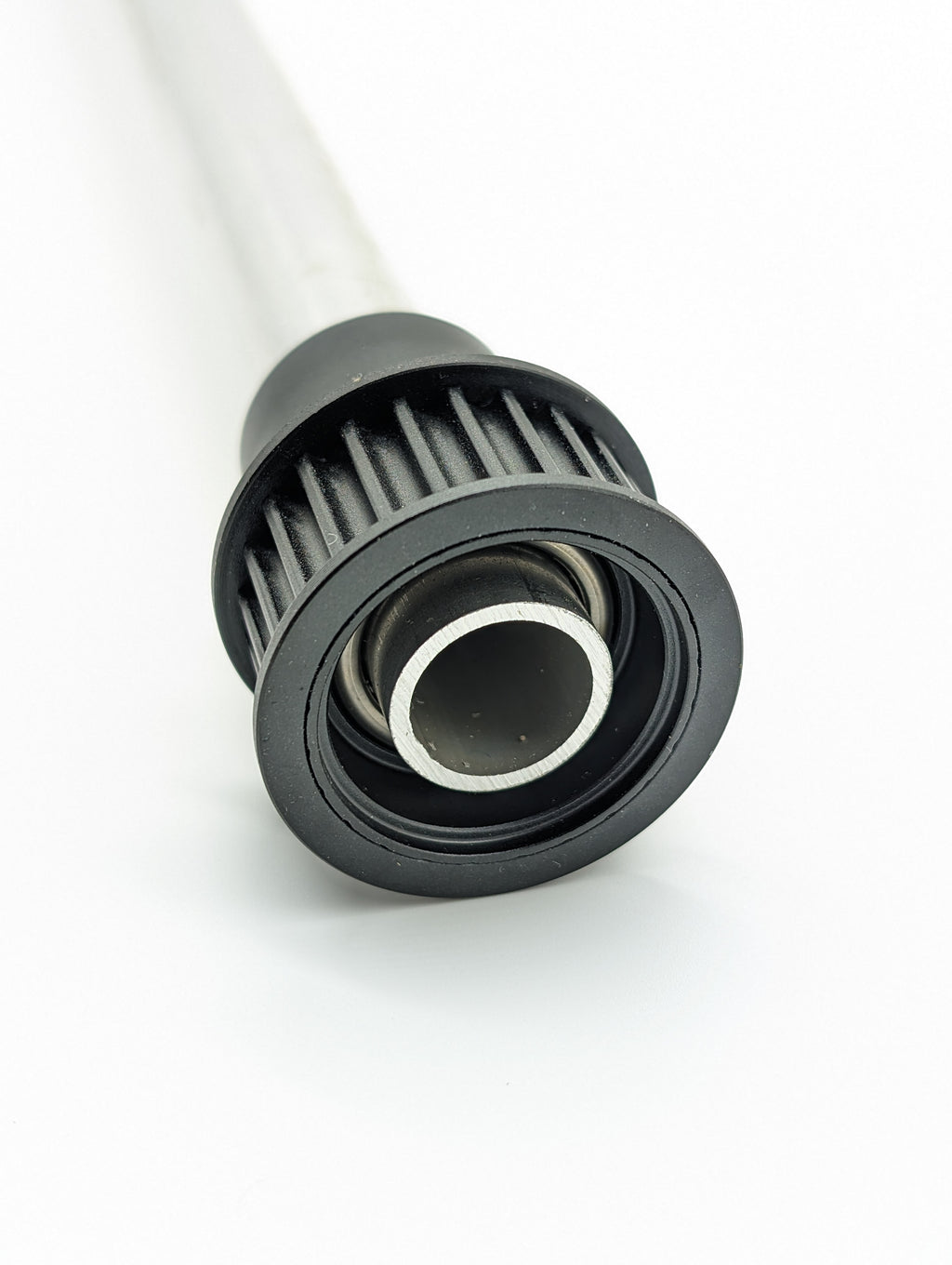

QTY 2 - 1" OD needle roller bearings for 3/4" OD tubes

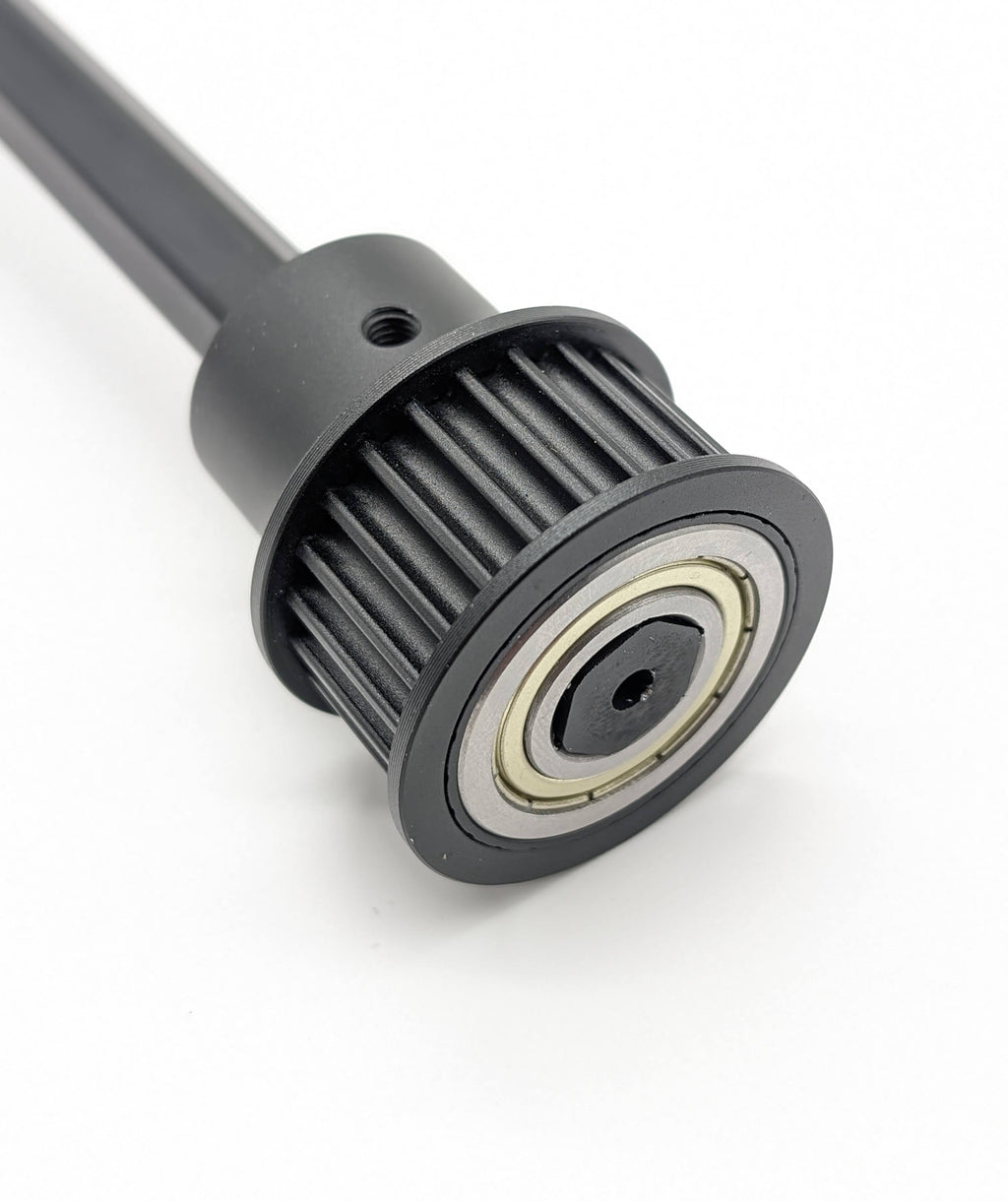

QTY 2 - 1/2" hex bearings for hex shafts

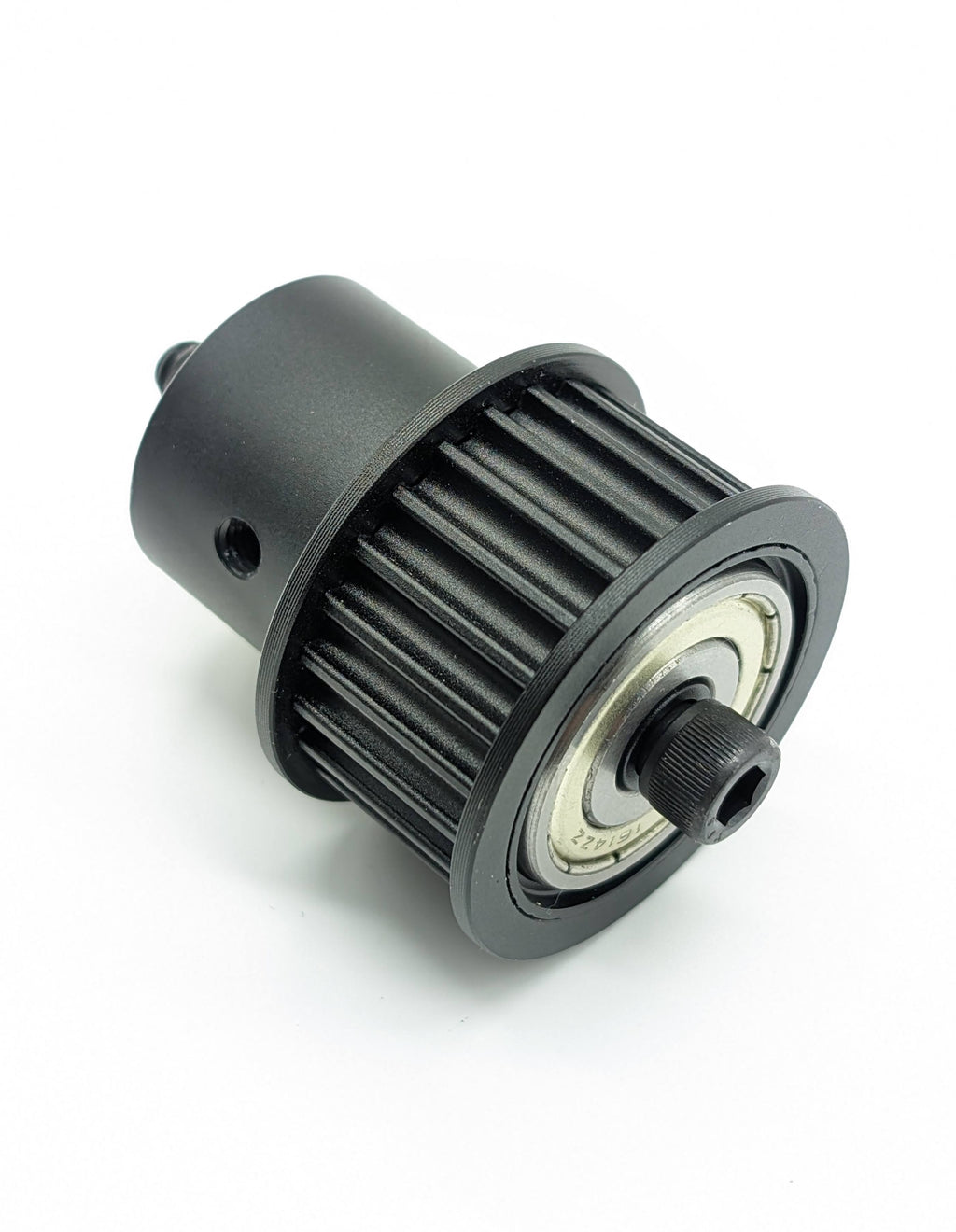

QTY 2 - 3/8" ID bearings and a custom hex spacer. Run a 1/4-20 bolt thru your external material and then slip the roller tube in to connect the two hubs together.

Kit also includes:

QTY 4 - 10-32 Button Head Bolts - .25" Length - for attaching tubes to metahub

QTY 2 - 1/4-20 2.25" Long Socket Head Bolt

QTY 2 - 1/4-20 Locknuts

Note that this kit provides enough parts to create a full roller with aluminum hubs on each end.

Thriftybot suggests this polycarbonate tubing or these aluminum tubes from McMaster-Carr.

Aluminum Metahub Weight: .15 lbs

Dead Axle Tube Roller STEP CAD File
