Description

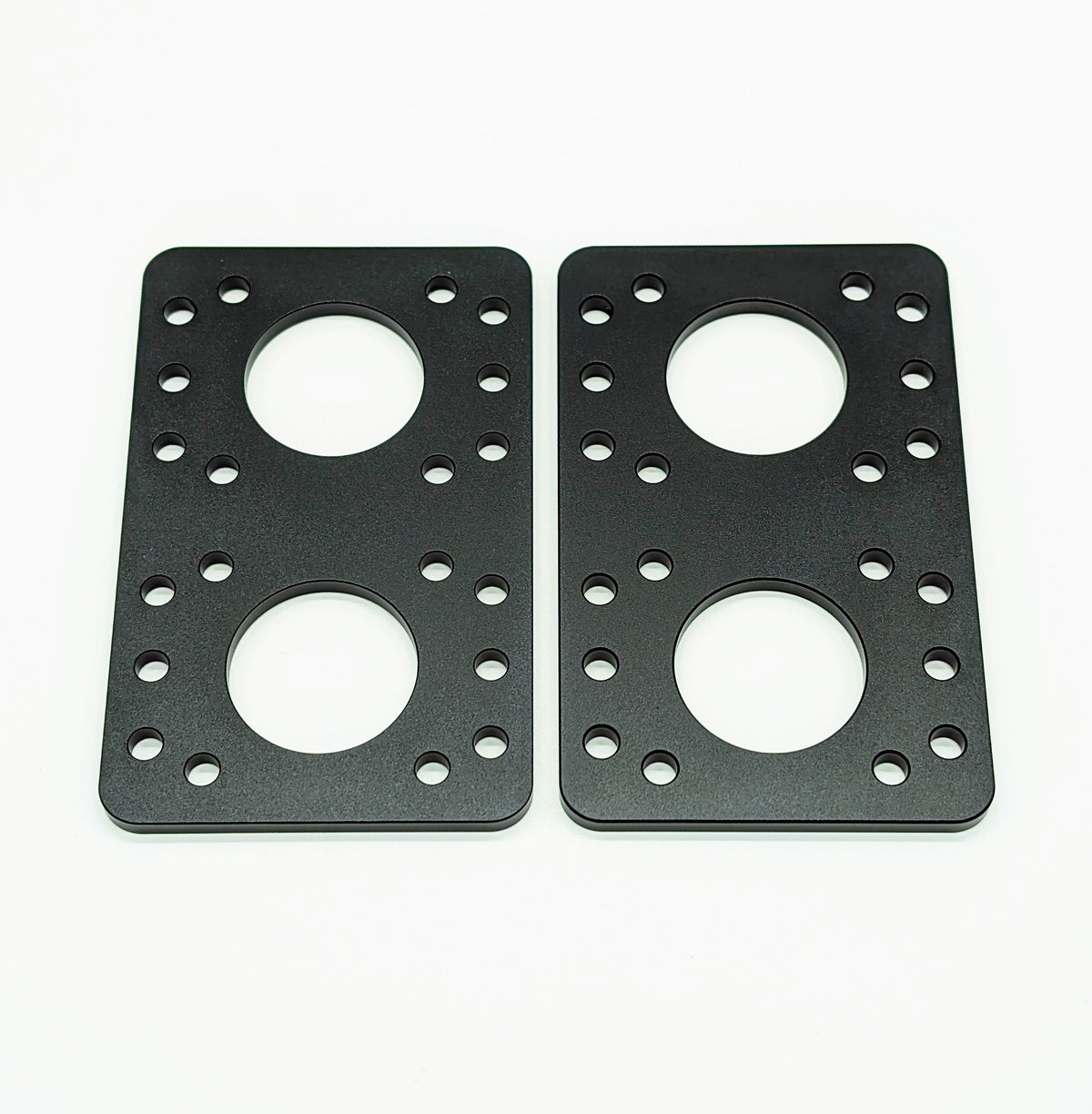

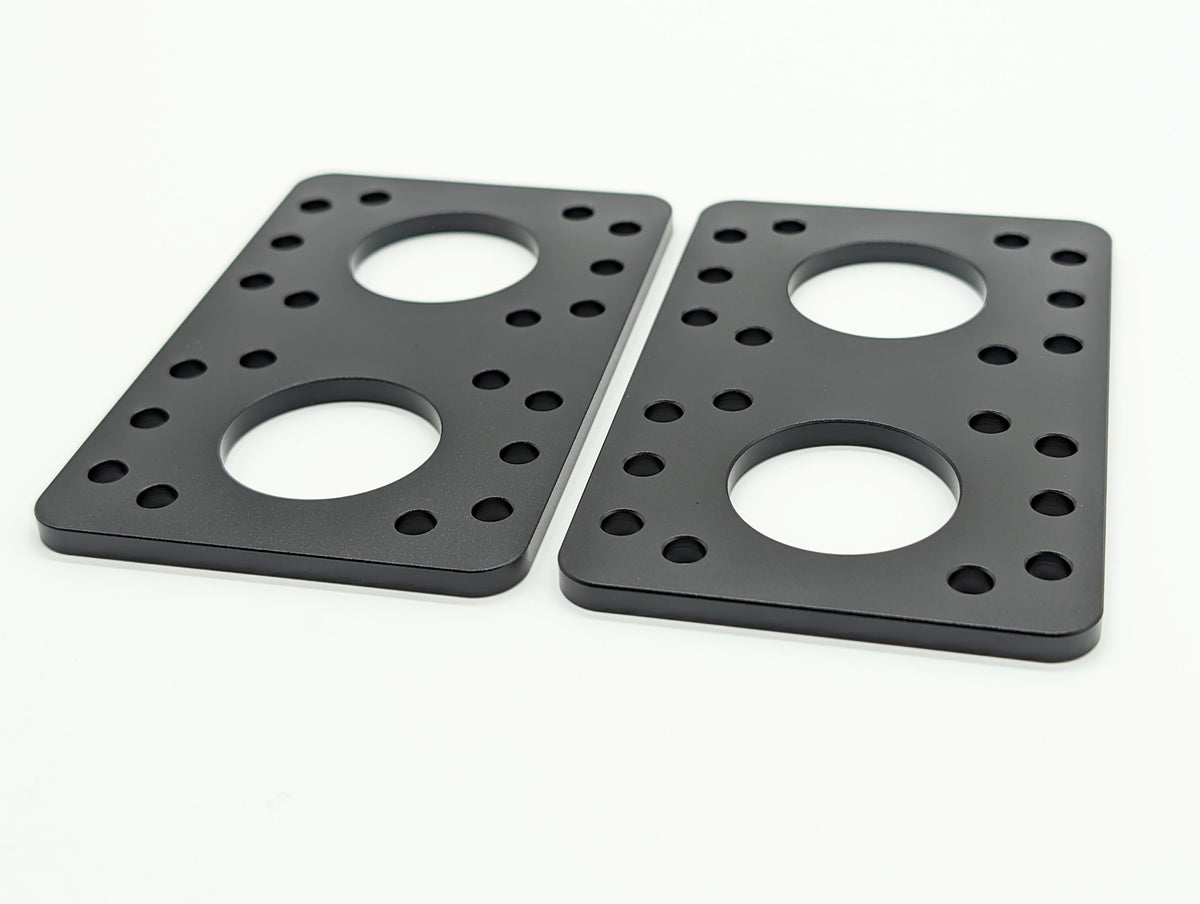

These 4mm thick aluminum 6061 plates mount to grid pattern tubing easily and can be used in multiple applications. They have a 2" center to center distance between the two 1.125" bearing holes and also include 1.875" bolt circle mounting holes as well. All small holes are 5mm in diameter, perfect for 3/16 rivets or #10 bolts.
Overall dimensions: 4" x 2.5" - 4mm thick
