Description
See all accessories related to the Thrifty Nova here!

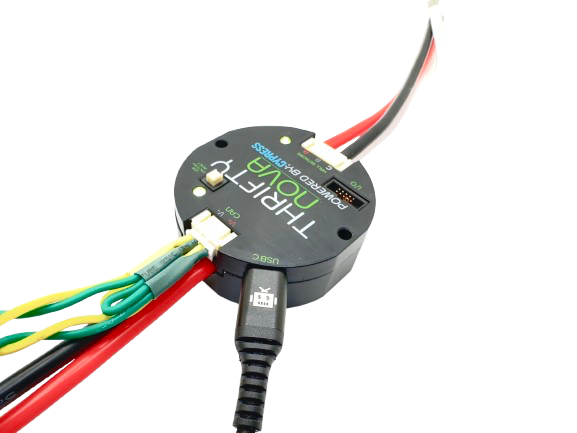

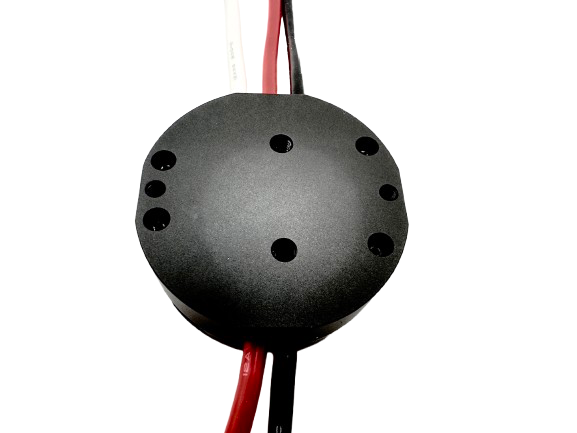

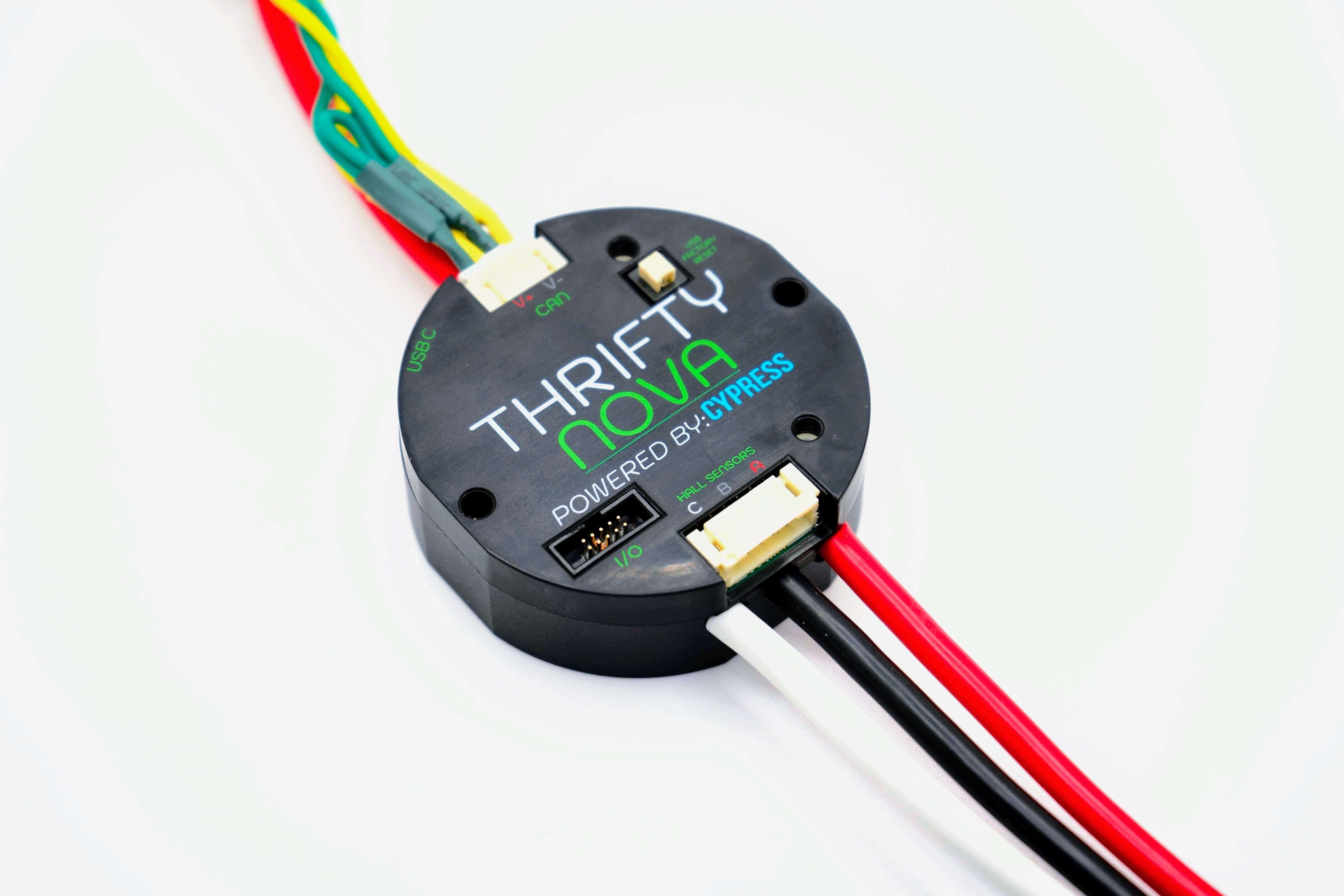

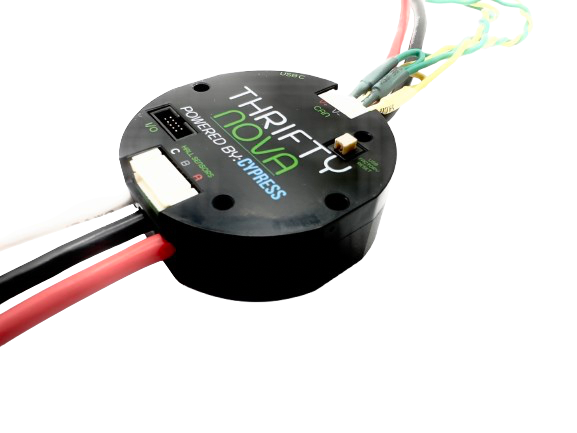

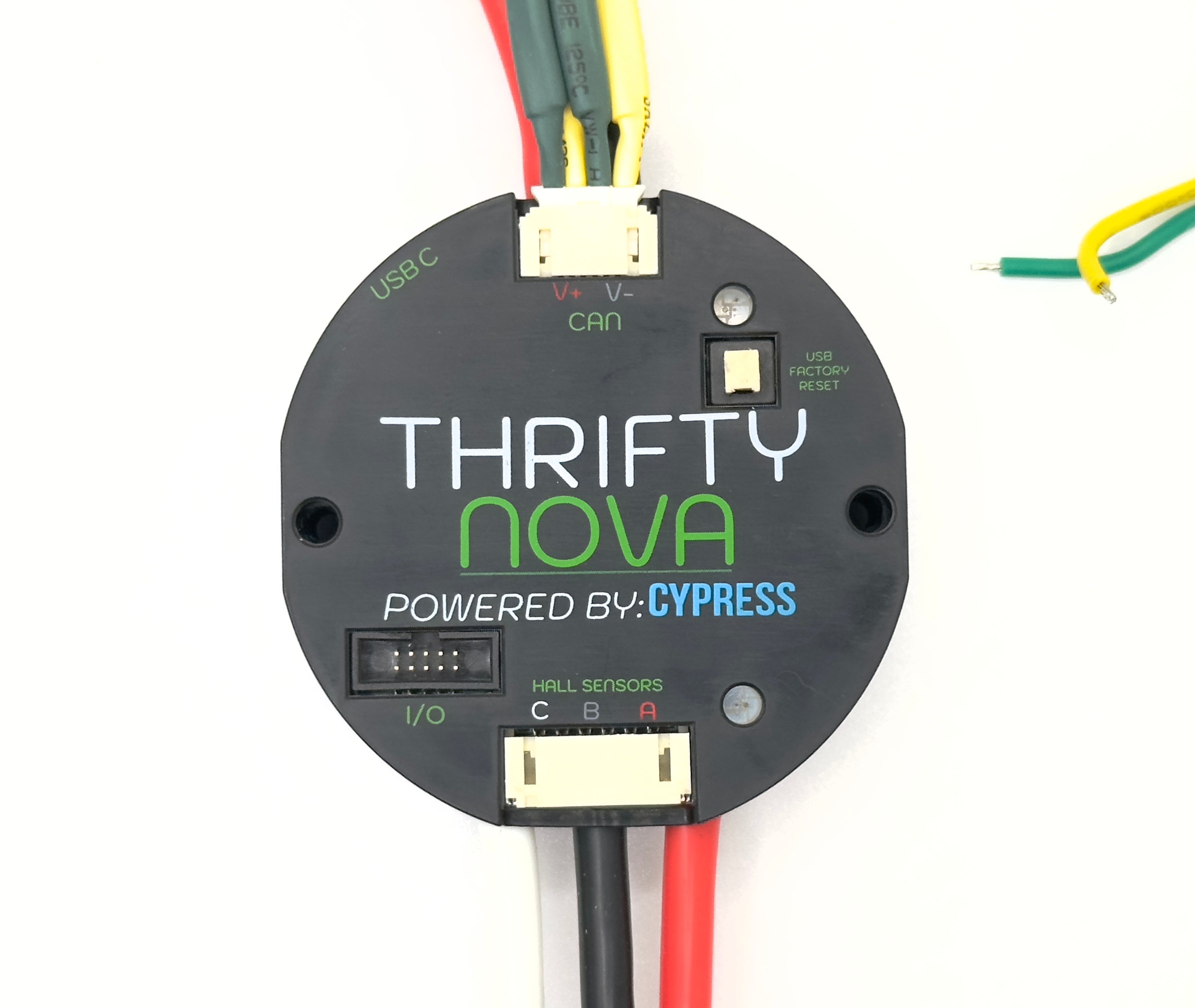

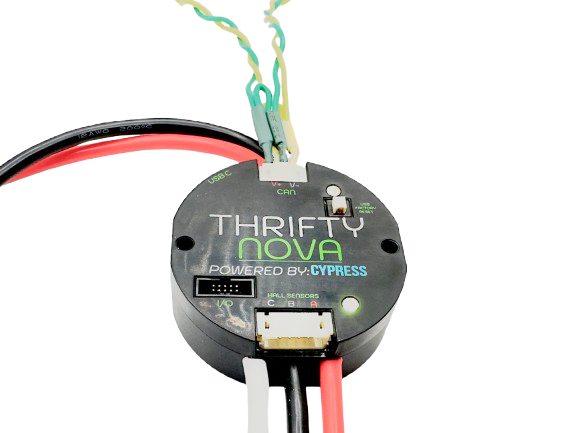

Built from the ground up, the Thrifty Nova is the first ever motor controller from The Thrifty Bot! The Nova is a brushless DC motor controller made to be as user-friendly and robust as possible. Featuring USB and CAN functionality, the Nova allows users to run their brushless motors without needing the full FRC control system while also being fully legal for FRC use for the 2025 season!
Features:
- Sensored brushless control of Neos and Neo 550's
- CAN (for FRC) and USB (via Thrifty Config) control and configuration setup
- Closed-loop velocity and position control with internal or external encoders
- Supply and stator current limits
- Follower mode
- 10-Pin Connector adaptable for encoders, analog sensors, and limit switches
- Temperature throttling to save motor with LED functionality to warn user
- Temperature shutdown
- Reverse Polarity Protection
- Regenerative braking
- Works with Thrifty Motor Runner Board
Details:
- 12V nominal voltage
- 4-20V Range, 25V Absolute Max
- 45A Continuous Current
- 110A Absolute Max Current, 80A Burst for 2 seconds
- 12AWG Wires
- 6 inch length, flexible silicone jacket
- CAN Cable
- Soldered loopback 22AWG Can Cable
- Flexible silicone jacket
Documentation:
- Our Gitbooks allows for downloading and reading here or below. Our software documentation and release hub can be found at docs.home.thethriftybot.com.
Quality Control:
Every single Nova will undergo final assembly, testing, and inspection in Lapeer, Michigan. Serial numbers will be written to memory and a sticker of the serial number will be placed on the inside of the case prior to shipping to customers.
Thrifty Config:
Thrifty Config is our USB client for the Thrifty Novas, which allows for viewing and setting parameters. It also allows for running of the Novas for testing without an FRC control system, as demonstrated below.
Pre-Orders will begin shipping the first week of December.
